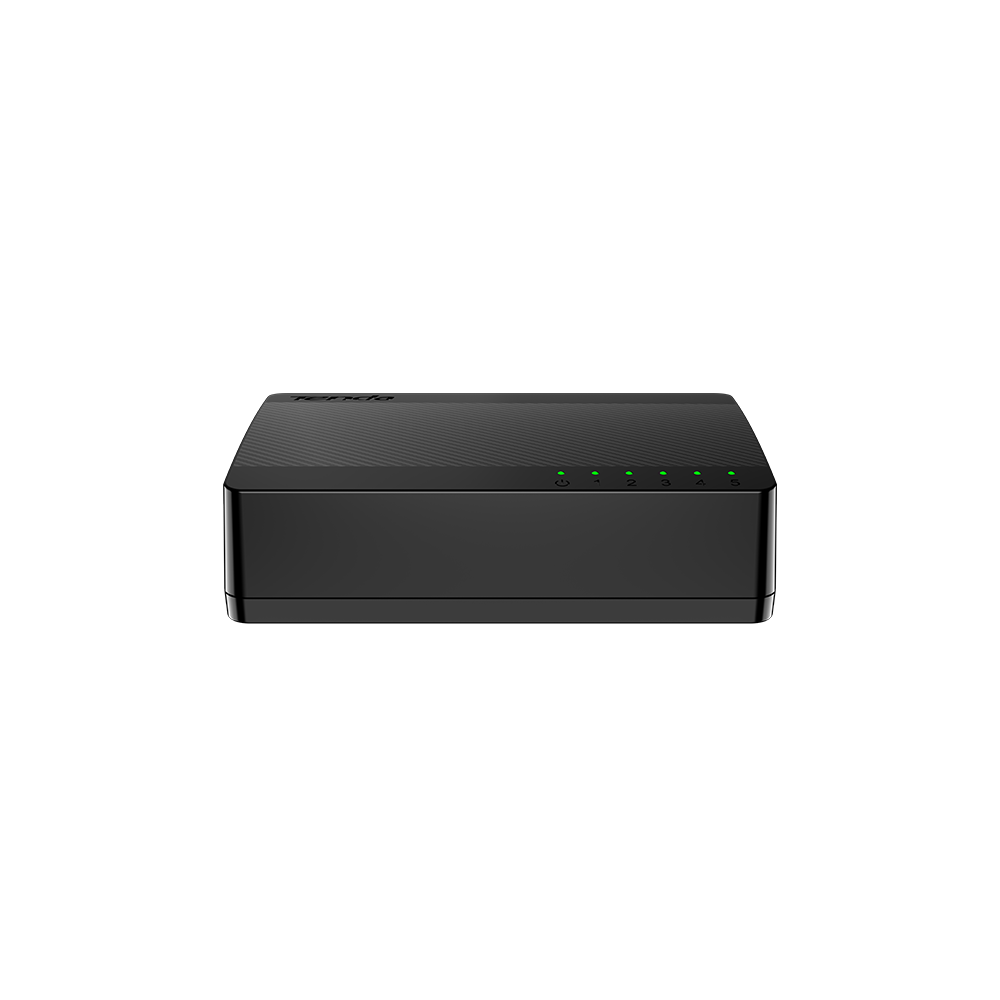

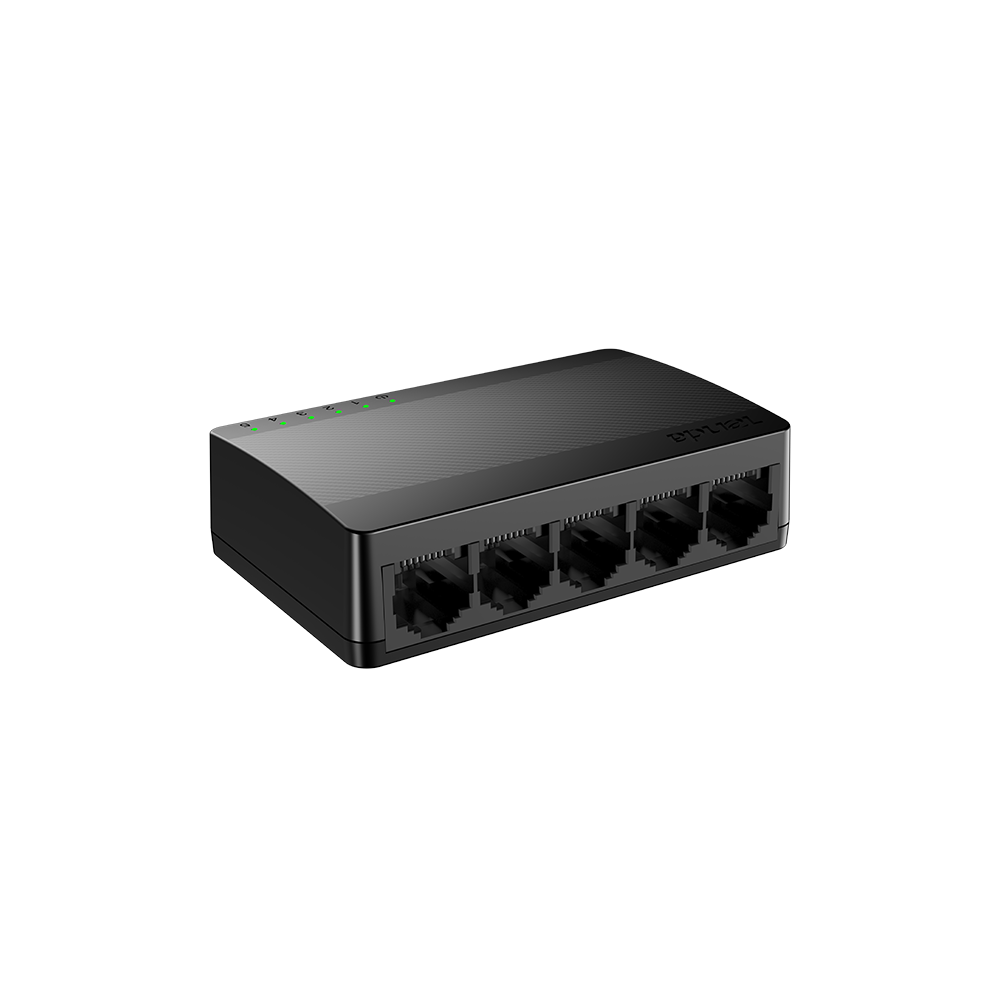

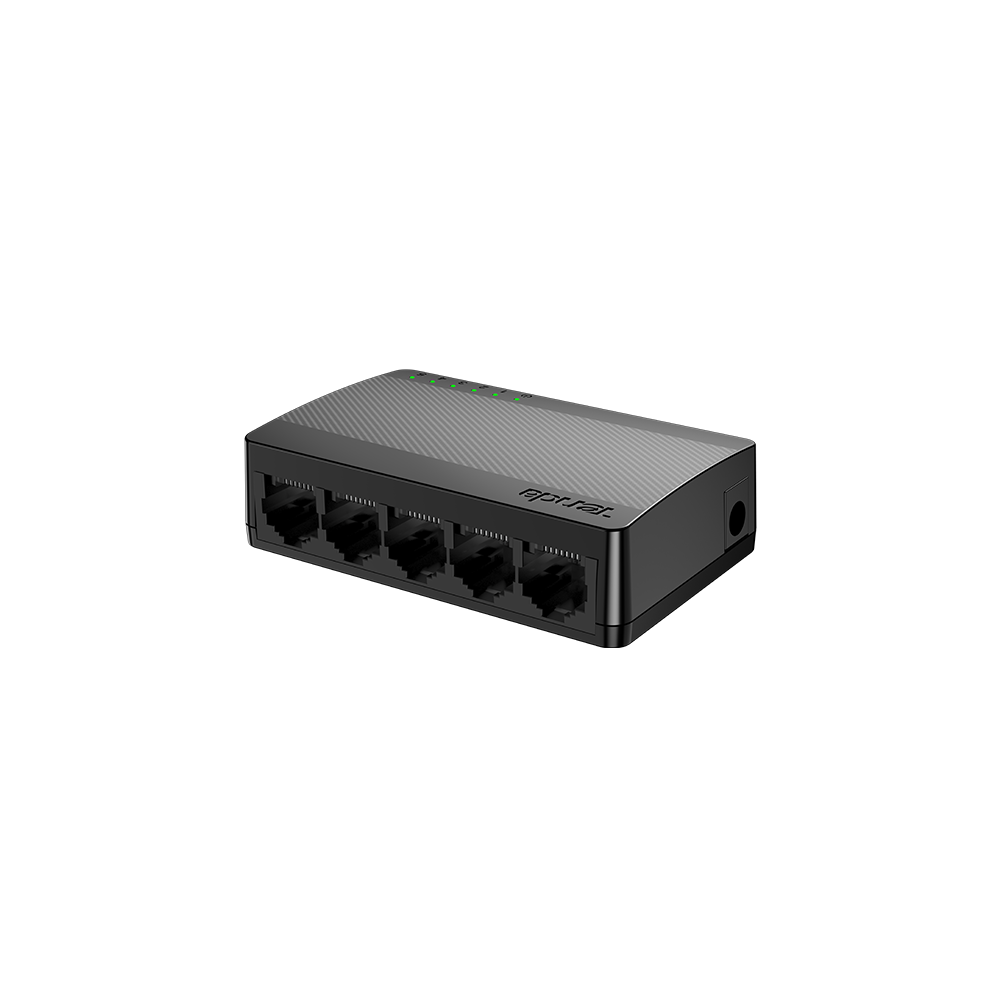

Tenda 5 Ports Gigabit Desktop Switch SG105M
₨2,650.00
SG105M 5-Port Gigabit Ethernet Switch
Tenda SOHO Gigabit Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network.Compared with a 1000M switch, they enhance transmission speed up to 10 times,and eliminate the bottleneck of cascading bandwidth
Related Products
SG105M
5-Port Gigabit Ethernet Switch
| Hardware | |
| Network standards | IEEE802.3
IEEE802.3u IEEE802.3x IEEE802.3ab |
| LED Indicator | One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device |
| Interfaces | 5*10/100/1000Base-T Ethernet ports |
| Transmission media | Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Fan quantity | N/A |
| Dimension | 82mm*52mm*22mm(L*W*H) |
| Material | Plastic |
| Level of protection | – |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1Mb |
| MAC address table | 2K |
| Jumbo frame | 15K |
| Power | Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter ) |
| Power consumption | Max:<1.7W |
| Mounting | Desktop mounting: support
Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
| Certification | – |
| Software | |
| Protocols | – |
| MAC address learning | Auto-learning and Auto-Updating |
| Funtions | plug-and-play |
