Gigabit Ports/4*5dBi Omnidirectional Antennas/2.4G and 5G Wireless Enhanced Module/ MU-MIMO/Beamforming+/APP Management
With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation.It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.
All Gigabit ports for full play of your ever-increasing bandwidth of optical fiber
AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.
Strong dual band WiFi signal for multi-wall penetration
With the new generation 802.11ac wave 2.0 standard, AC10 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls.
Innovative MU-MIMO technology
With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard, AC10 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices. Support IPv6.
with MU-MIMO Technology
without MU-MIMO Technology
Four clean-cut antennas for stronger WiFi signal and wider WiFi coverage
AC10 boasts four 5 dBi omni-directional antennas. With leading accordion wire design, multiple oscillators and scientific bevel, AC10 balances the signal field and gain, providing you with stronger WiFi signals.
Configuration-free for quick setup
What if you forget your PPPoE user name or password, or you cannot login to the web UI of the router for setup? AC10 can eliminate your concern by migrating your PPPoE user name and password from your original router.
Tenda WiFi app for your smart life
Tenda WiFi app allows you to upgrade online, manage your network and devices remotely and get a real-time understanding of usage of your router, making life simple and easy.
Function-rich WiFi router
● Supports one-click bandwidth control
● WiFi Repeater to expand WiFi coverage
● Supports L2TP, PPTP and IPSec penetration
● WiFi Schedule for smart life and green environment
|Standard & Protocol||IEEE 802.3, IEEE 802.3u
|Interfaces||3*GE LAN Ports
1*GE WAN Port
|Antenna||4*5dBi External Dual Band Antennas|
|Button||1*WiFi On/Off button
|Power||Power Input: 100-240V—50/60Hz
Power Output: DC 12V==2A
|Dimension||Package Box: 390*198*70mm（L*W*H)
|IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
|5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
|Simultaneous dual band 2.4 & 5GHz|
SSID Broadcast and Hide
Signal Power Adjustment
|WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
|Internet Connection Type
|Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration
|DHCP Server and Client
DHCP Client List
DHCP Address Reservation
|Firewall||Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
|DDNS||DynDns, NO-IP, Oray.com, 3322.org, 88ip|
|Special Features||Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off
|Others||IPv6 Features Supported
MAC Address Filter
IP and MAC Address Binding
System Upgrade Online
|Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
|Humidity||Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
|Default Access: tendawifi.com or http://192.168.0.1|
|Certification||CE, FCC, RoHS, BSMI, NCC, EAC, IC|

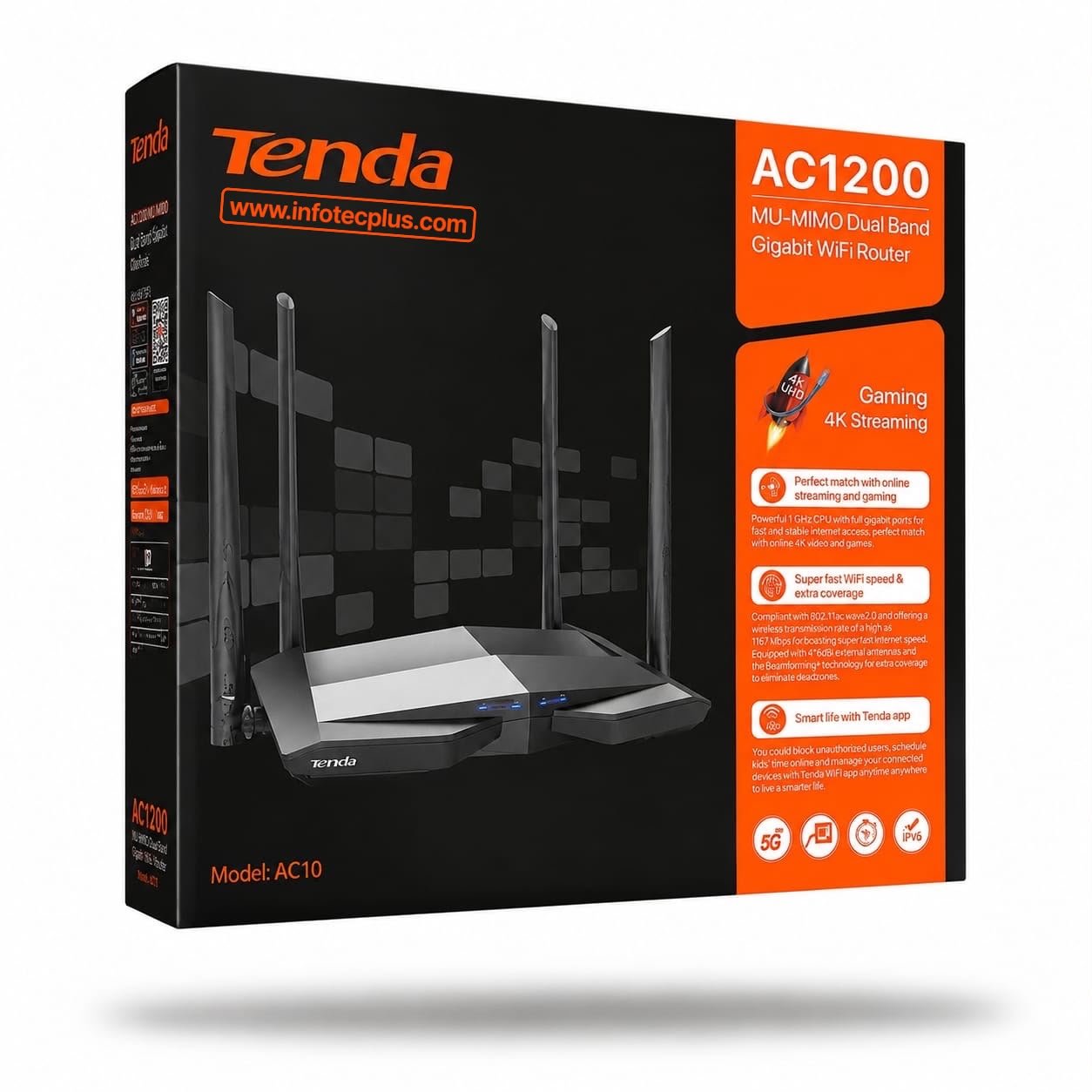

|Package Contents||AC1200 Smart Dual-Band Gigabit WiFi Router
Quick Installation Guide
