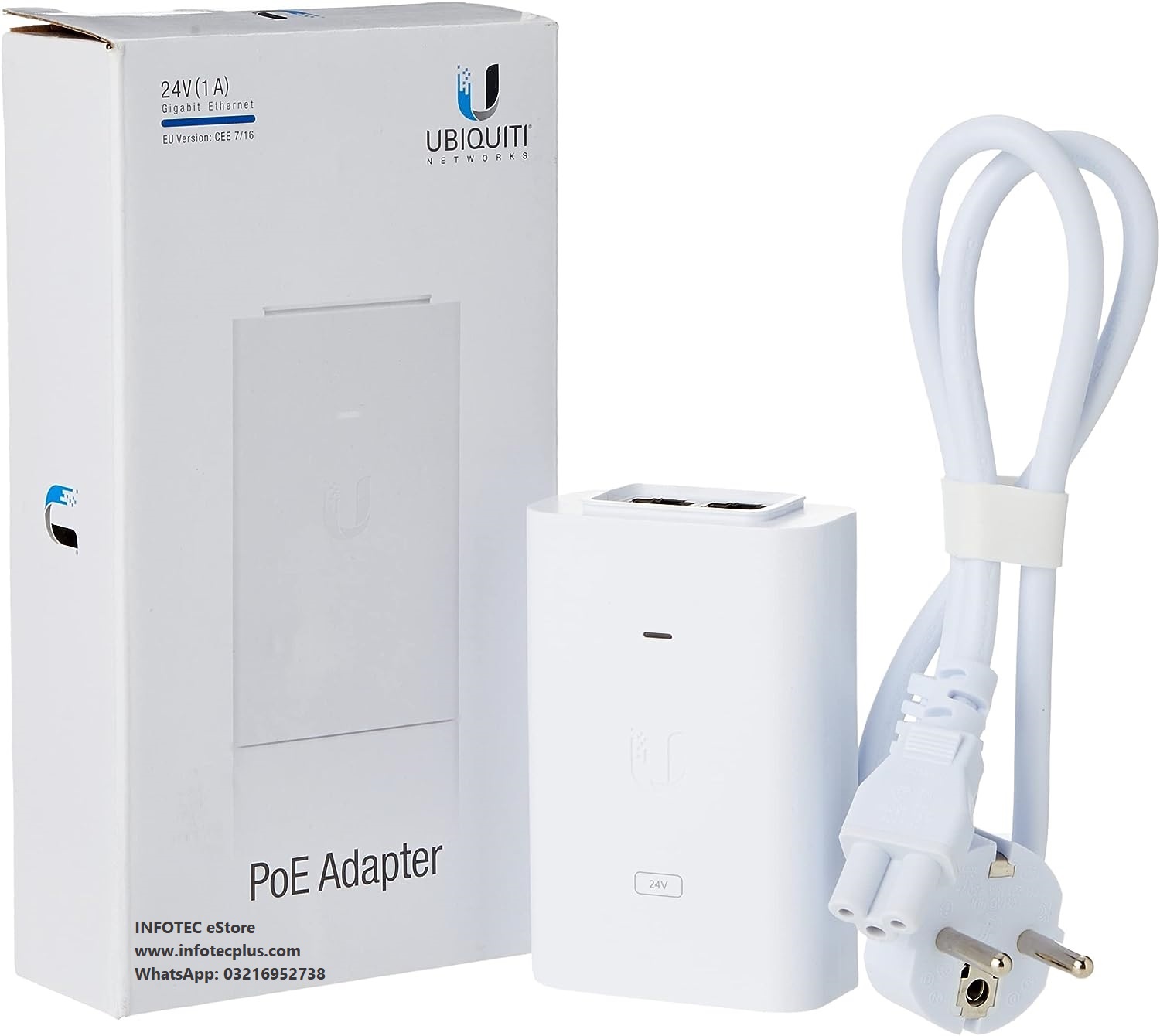

Ubiquiti 24V 1A Gigabit PoE Adapter Model: POE-24V-24W-G-WH

POE-24-24W-G (Hi-Power)
• Dimensions: 88 x 57 x 33 mm (3.5 x 2.2 x 1.3″)
• Weight: 159 g (5.6 oz)
• Output voltage: 24V DC @ 1.0A
• LAN activity indicator: No
• Gigabit LAN port: Yes
• Remote reset capability: Yes
• Reset button: Yes
• Rated voltage: 100-240V AC @ 50/60Hz
• Input current: 0.6A @ 120V AC, 0.4A @ 240V AC
• Inrush current: <60A peak @ 120V AC, <120A peak @ 230V AC
• Efficiency: 80+%
• Output ripple: 1% Max.
• Switching frequency: 65 kHz
• Line regulation: ≤ 3%
• Load regulation: ≤ 5%
• 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
• 4-pair powering: –
• Storage temperature: -30 to 70°C (-22 to 158° F)
• Ambient operating temperature: 0 to 40° C (32 to 104° F)
• Ambient operating humidity: 35 to 95% noncondensing
• AC connector: IEC-320 C6
• Data IN / PoE: RJ45 shielded socket
• Surge protection: Difference and common mode
• Clamping protection: 11V data, 60V power
• Max. surge discharge: 1500A (8/20 μs) power
• Peak pulse current: 36A (10/1000 μs) data
• Shunt capacitance: <5 pF data
• Response time: <1 ns
• Certifications: CE, FCC, IC, UL

Package Contents:  PoE Adapter × 1, Power Cable  × 1
