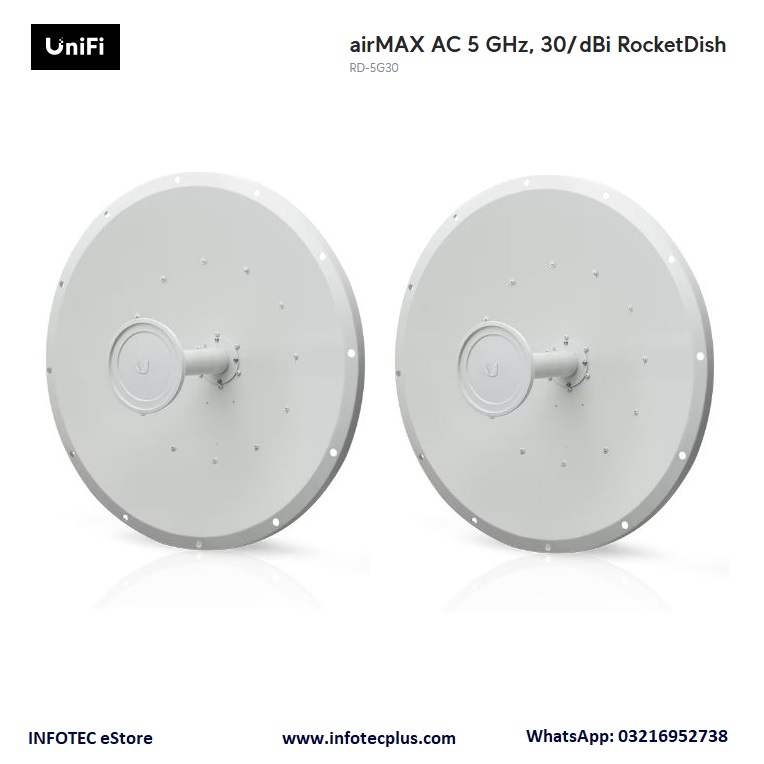

Ubiquiti airMAX AC 5 GHz, 30dBi RocketDish RD-5G30 × 2 (Pair) (Heavy Weight)

2×2 dual-polarity performance

Robust mechanical design for outdoor application use

Compatible with Rocket Prism 5AC

Compatible with Rocket 5AC Lite

Compatible with Mimosa C5C

Technical Specification

• Model: RD-5G30
• Dimensions: 650 x 650 x 304 mm (25.6 x 25.6 x 11.97″)
• Weight: 9.8 kg (21.61 lb)
• Frequency Range: 4.9 – 5.8 GHz
• Gain: 4.9 GHz: 26 dBi, 5 – 5.9 GHz: 30 dBi
• vHPOL Beamwidth: 5° (3 dB)
• VPOL Beamwidth: 5° (3 dB)
• F/B Ratio: 34 dB
• Max. VSWR: 1.4:1
• Wind Loading: 787 N @ 200 km/h (177 lbf @125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
• NDAA Compliant: Yes

• Package Content: 2 X RD5G30
