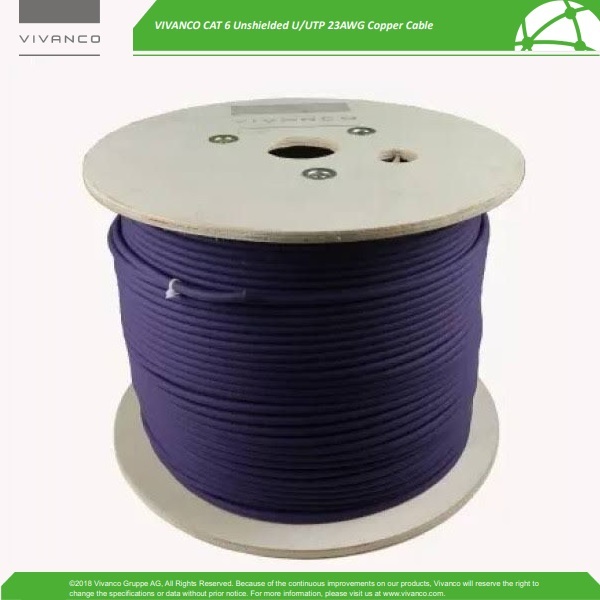

VIVANCO 23AWG UTP CAT6 LSZH PURPLE PureCopper 305Meter

DESCRIPTION

VIVANCO Category 6 U/UTP cables are manufactured and tested to
the TIA/EIA 568-C.2, EN50173-1 and ISO/ IEC 11801 Category 6
specifications. Each cable consists of 8 color coded 23AWG
polyethylene insulated conductors. These are twisted together to
form 4 pairs with varying lay lengths. These pairs are then formed
around a central ‘X’ shaped polyethylene filler. This filler assists in
maintaining and enhancing the cables performance.

FEATURES & BENEFITS

Features 25 Year System Warranty
Fast Feed Reelex Packaging
Category 6 Compliant TIA/EIA 568-C.2-1, EN50173-1 • ISO/IEC 11801
Operating Frequency 250MHz
EC Verified
Zero halogen, no corrosive gases IEC 60754-1(LSZH)
Flame propagation IEC 60332-1(LSZH)
Smoke density IEC 61034-1(LSZH)

TYPICAL APPLICATIONS

1000BASE-T Gigabit Ethernet
POE Applications
100BASE-TX Fast Ethernet
VOIP Applications
622 Mbps ATM
Composite Video
