UISP airMAX Rocket Prism 5AC (RP-5AC-Gen2)

High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.

Mechanical

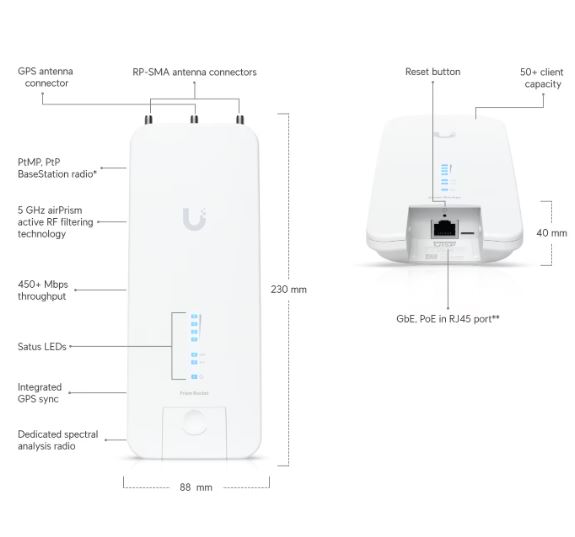

• Dimensions: 88 x 40 x 230 mm (3.5 x 1.6 x 9.1″)
• Weight: 400 g (14.1 oz)
• Enclosure material: Die-cast aluminum
• Mounting: Pole mounting (Kit included)
• Wind loading: 342.5 N at 200 km/h (77 lbf at 125 mph)

Hardware
• Networking interface: (1) GbE RJ45 port
• RF connectors: (2) RP-SMA (Waterproof), (1) GPS (Waterproof)
• Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power supply: 24V, 1A gigabit PoE adapter (Included)
• Supported voltage range: 18—27V DC
• Max. power consumption: 9.5W
• LEDs: (4) Signal strength: software-adjustable to correspond to custom RSSI levels GPS, LAN, power
• Shock and vibrations: ETSI300-019-1.4
• Ambient operating temperature: -40 to 80° C (-40 to 176° F)
• Ambient operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC, RoHS
• NDAA Compliant: Yes

Software
• Modes: Access Point, station
• Channel sizes: PtP mode 10/20/30/40/50/60/80 MHz, PtMP mode 10/20/30/40 MHz
• Services: Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing
• Utilities: airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test
• Distance adjustment: Dynamic Ack and Ackless mode
• Power adjustment: Software adjustable UI or CLI
• Security: WPA2 AES only
• QoS: Supports packet level classification WMM and user customer level: High/Medium/Low
• Statistical reporting: Up time, packet errors, data rates, wireless distance, Ethernet link rate
• Ubiquiti specific features: 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode

Operating Frequency (MHz)
• Worldwide: 5150–5875 MHz

USA
U-NII-1: 5150–5250 MHz
U-NII-2A: 5250–5350 MHz
U-NII-2C: 5470–5725 MHz
U-NII-3: 5725–5850 MHz

Management Radio (MHz)
• Worldwide: 2412–2472 MHz
• USA: 2412–2462 MHz
